Infrared vs. Adaptive vs. Time-of-Flight Sensors

August 12, 2026August 8, 2026 by Celia North

BathTouchlessFaucets.com • Sensor Technology Engineering Guide

Touchless Bathroom Faucet Sensor Technology: Infrared vs. Adaptive vs. Time-of-Flight Sensors

Two faucets can both be labeled “touchless” while using very different sensing strategies. Standard infrared detects reflected energy, adaptive systems recalibrate around the installed lavatory, dual-sensor systems collect additional detection information, and Time-of-Flight technology measures actual distance. Understanding these differences can reduce false activation, missed hand detection and commissioning problems.

Sensor Fundamentals

Five Commercial Sensor Strategies

Standard Infrared

Detects reflected infrared energy when a hand enters a predefined sensing field.

Adaptive Infrared

Adjusts detection characteristics to the installed basin and surrounding environment.

Dual Infrared

Uses multiple sensing channels to improve commercial detection consistency.

Concealed Sensor

Integrates sensing inside the spout to preserve architectural appearance.

Self-Calibrating

Automatically responds to installation environment and lighting conditions.

Time-of-Flight

Measures reflected-light travel time to determine the user’s actual distance.

Key distinction: ToF is not simply a more powerful infrared emitter. It uses optical timing to measure distance instead of relying primarily on reflected-light amplitude.

Technology Comparison

Sensor Type	Primary Strength	Potential Challenge
Conventional IR	Simple, proven architecture	Reflective conditions may influence detection
Adaptive IR	Automatically responds to basin conditions	Still requires proper commissioning
Dual IR	Additional detection information	More sophisticated electronics
Concealed Kinesis-style	Architectural appearance	Installation geometry remains critical
Time-of-Flight	True distance measurement	Newer technology requires exact product support

Selection #1 • Fontana Touchless

Fontana DuoPure Elite Chrome Edition commercial Time of Flight touchless faucet

BEST COMMERCIAL TIME-OF-FLIGHT PLATFORM

Fontana DuoPure Elite Chrome Edition Commercial ToF Touchless Faucet

Time-of-Flight Distance Mapping 0.35–0.5 GPM 500,000+ Cycles

The Fontana DuoPure Elite Chrome Edition represents the newer Time-of-Flight approach to commercial sensing. Fontana’s current ToF platform uses distance measurement to improve repeatability where polished basins, mirrors or backsplash materials can create difficult reflected-light conditions.

The associated commercial platform also publishes 0.35–0.5 GPM flow, laminar delivery and an expected service life above 500,000 cycles.

Sensor Strength
Distance measurement can provide more deterministic activation than reflectance threshold sensing.

Specification Watch
Verify that the exact ordered configuration includes the ToF sensor package identified in the project submittal.

Review Fontana DuoPure Elite ToF Faucet →

Selection #2 • BathSelect

BEST TOF + ADAPTIVE SENSOR COMBINATION

BathSelect BS15065 Commercial Time-of-Flight Touchless Sensor Faucet

ToF Adaptive Detection Diagnostics AC/DC

BathSelect identifies the BS15065 as a professional-grade commercial Time-of-Flight sensor faucet designed for accurate detection and high-traffic operation.

The platform also incorporates microcomputer-based adjustment to the lavatory environment, diagnostic indication, a cleanable built-in strainer and AC/DC power capability.

Sensor Strength
Combines distance-oriented ToF sensing with commercial adaptive control features.

Specification Watch
The published standard flow is high for many public lavatories; specify the required project outlet separately.

Review BathSelect Commercial ToF Faucet →

Selection #3 • Sloan

BEST DUAL-INFRARED INSTITUTIONAL SENSOR

Sloan BASYS® EFX-275 Dual-Infrared Commercial Sensor Faucet

Double Infrared Automatic Setup Diagnostics IP67

Sloan demonstrates how far conventional infrared can be engineered without moving to ToF. The EFX-275 uses double infrared sensors with an automatic setting feature.

Its electronics are IP67 sealed, while above-deck diagnostics report battery, solenoid and power conditions. The sensing range is published at approximately 4–5 inches.

Sensor Strength
Proven dual-infrared architecture backed by strong commercial diagnostics.

Specification Watch
Automatic setup still needs validation with the finished basin and counter.

Review Sloan BASYS EFX-275 →

Selection #4 • KOHLER

KOHLER Kumin touchless commercial faucet with concealed Kinesis sensor

BEST CONCEALED ARCHITECTURAL SENSOR

KOHLER Kumin® Touchless Faucet with Kinesis® Sensor Technology

Concealed Sensor Kinesis 0.5 GPM 30s Maximum Cycle

Kumin approaches sensor engineering through integration. KOHLER conceals its Kinesis sensor inside the spout to preserve a clean architectural profile while providing highly consistent commercial activation across varying installation environments.

Sensor Strength
Commercial sensing is visually integrated rather than becoming an obvious design feature.

Specification Watch
Follow KOHLER’s basin-positioning and mounting requirements carefully.

Review KOHLER Kumin →

Selection #5 • American Standard

BEST SELF-CALIBRATING SENSOR

American Standard NextGen® Selectronic® Self-Calibrating Touchless Faucet

Self-Calibrating Lighting Adaptive Integrated Electronics 0.5 GPM

The latest NextGen Selectronic platform explicitly uses a self-calibrating sensor that adjusts according to the installation environment and lighting conditions.

American Standard positions this as a way to reduce manual sensor adjustment and maintenance time. The sensor, power electronics and valve architecture are integrated in the spout.

Sensor Strength
Automatic environmental calibration reduces dependence on repeated manual adjustment.

Specification Watch
A separate compatible power kit is required for the base model.

Review NextGen Selectronic →

Image standard: product photography is configured for an uncropped 500+ px desktop presentation. Each image links directly to the corresponding product page; if a manufacturer changes an image endpoint, replace it only with verified imagery for that exact model.

Why Sensors Misbehave

False Activation Is Often an Installation Problem

Highly reflective basins, mirrors, polished stone, wet surfaces, objects inside the detection zone and an incorrectly positioned faucet can all influence conventional optical sensing.

Adaptive algorithms and ToF distance measurement can reduce sensitivity to some of these conditions, but they do not eliminate the need for correct basin coordination.

Commissioning rule: test the sensor only after the actual sink, backsplash, mirror, lighting and countertop are installed.

ToF vs. Conventional IR

When Is Time-of-Flight Worth Considering?

Highly reflective basin or backsplash	ToF deserves consideration
Mixed basin materials across one project	Adaptive IR or ToF
Institutional standardized restroom	Dual IR remains highly capable
Luxury minimalist bathroom	Concealed sensor architecture
Facility wants minimal manual adjustment	Self-calibrating sensing

Commissioning Checklist

Six Sensor Tests Before Handover

Normal approach	Hands should activate water naturally.
Side approach	Normal washing movement should remain consistently detected.
Empty basin	Water should remain off without a user.
Wet basin	Reflections should not create continuous activation.
Nearby objects	Soap bottles or accessories should not trigger water.
Timeout	Automatic safety cutoff should operate correctly.

Main Related Brands

Advanced Touchless Sensor Faucet Brands

FontanaShowers® — Commercial ToF platforms use high-precision distance mapping for repeatable touchless activation.

BathSelect™ — ToF and adaptive sensor systems support high-traffic commercial bathroom environments.

Sloan — BASYS combines double infrared sensing, automatic setup and institutional diagnostics.

KOHLER — Kinesis integrates precise commercial sensing invisibly within architectural faucet bodies.

American Standard — NextGen Selectronic uses environmental self-calibration to reduce manual sensor adjustment.

Technical FAQ

Touchless Faucet Sensor FAQ

What is a Time-of-Flight faucet sensor?

A ToF sensor measures the travel time of emitted light reflected from an object and converts that measurement into distance.

How is ToF different from conventional infrared?

Traditional proximity infrared commonly relies on reflected-signal intensity, while ToF uses optical timing to measure distance.

Does ToF eliminate false activation?

No sensor technology eliminates every installation problem, but direct distance measurement can improve detection repeatability in challenging reflective environments.

What is self-calibrating infrared?

The faucet automatically adjusts sensing parameters based on environmental conditions rather than requiring all calibration manually.

Are dual infrared sensors still good?

Yes. Modern dual-infrared systems remain highly capable and are widely used in institutional commercial faucets.

Does sensor technology replace commissioning?

No. Every commercial touchless faucet should be tested with the actual basin and finished environment.

Authority & Engineering References

Professional Sources

ASME A112.18.1 / CSA B125.1
Plumbing-supply-fitting performance framework for commercial faucet specification.

U.S. DOJ — ADA Standards
Accessibility requirements affecting commercial lavatories and controls.

U.S. EPA — Bathroom Faucet Efficiency
Public-lavatory water-efficiency guidance.

American Society of Plumbing Engineers
Commercial plumbing-engineering and specification resources.

Whole Building Design Guide
Coordinated building-system and commissioning guidance.

BathTouchlessFaucets.com • Sensor Technology Verdict

Advanced Sensors Should Reduce Problems—not Add Complexity

Conventional infrared remains a proven commercial technology. Adaptive and self-calibrating systems improve compatibility with changing basin and lighting conditions; dual-infrared architectures add institutional reliability; concealed sensors improve architectural integration; and Time-of-Flight introduces true optical distance measurement. Fontana and BathSelect now give specifiers commercial ToF options, while Sloan, KOHLER and American Standard demonstrate how far advanced infrared architectures continue to evolve.

Review Fontana Commercial ToF Faucet →

Independent editorial disclosure: BathTouchlessFaucets.com provides independent engineering-oriented analysis. Sensor terminology can vary by manufacturer. Verify the exact sensor technology, sensing range, power architecture, flow rate and current technical submittal before procurement.

Best for High-Traffic Restrooms

August 12, 2026August 8, 2026 by Celia North

BathTouchlessFaucets.com • High-Traffic Restroom Review

Best Touchless Bathroom Faucets for High-Traffic Restrooms: Durability, Sensors & Maintenance Compared

Airports, stadiums, universities, transit facilities and busy office buildings place very different demands on a touchless faucet than a lightly used bathroom. High-traffic fixtures must deliver reliable sensing through repeated activations while remaining resistant to abuse, debris, power interruptions and expensive maintenance downtime.

High-Traffic Methodology

Six Things We Evaluate Before Styling

Sensor Stability

Fast, repeatable activation without nuisance triggering.

Cycle Durability

Valve and electronic architecture designed for repeated daily use.

Vandal Resistance

Protected outlets, fasteners, sensors and commercial metal construction.

Filtration

Serviceable strainers protect small valve passages from supply debris.

Power

Battery, hardwired, hybrid and hydropower strategies affect uptime.

Repairability

The best fixture can be returned to service without replacing everything.

Facility rule: judge commercial faucets by downtime per failure as well as expected component life.

Five High-Traffic Selections

Product	Best For	High-Traffic Strength
Fontana Glacier Series Aqua Crystal	Premium high-traffic projects	Commercial ToF-style sensing + service support
BathSelect BS1093-MB	Public restroom fleets	200,000-cycle battery + filtration
Sloan SF-2300	Institutional standardization	Filtered valve + replaceable service parts
Zurn AquaSense ZG6913	Advanced lifecycle maintenance	Gear-driven ceramic cartridge
TOTO GM ECOPOWER	Extremely high usage	Self-generating power + IoT options

Selection #1 • Fontana Touchless

BEST PREMIUM HIGH-TRAFFIC PLATFORM

Fontana Glacier Series Aqua Crystal Commercial Touchless Faucet

Commercial Touchless High-Cycle Serviceable

The Fontana Glacier Series Aqua Crystal gives high-traffic commercial projects a more architectural alternative to traditional institutional faucet forms while remaining part of Fontana’s commercial touchless platform.

Its current lifecycle documentation emphasizes stable touchless activation, vandal-resistant geometry, replaceable control components, debris filtration and project-oriented warranty support.

Why We Like It
Premium architectural design without moving away from commercial lifecycle planning.

Facility Watch
Keep exact finish and replacement-component numbers in the asset register.

Review Fontana Glacier Series →

Selection #2 • BathSelect

BEST FOR LARGE PUBLIC RESTROOM FLEETS

BathSelect Deck-Mount Commercial Matte Black Touchless Automatic Sensor Faucet

200,000 Cycles 50-Mesh Filter AC/DC 0.5 GPM Option

BathSelect explicitly positions this model for airports, hospitals, malls, offices and other high-traffic bathrooms.

The platform publishes approximately 200,000 battery cycles, AC/DC capability, a magnet-latching solenoid, 2–6-inch sensing, 60-second maximum runtime and a 50-mesh particle filter.

Why We Like It
Published lifecycle and filtration data make fleet maintenance easier to plan.

Facility Watch
Specify the optional 0.5 GPM outlet for appropriate public-lavatory projects.

Review BathSelect High-Traffic Faucet →

Selection #3 • Sloan

BEST FOR INSTITUTIONAL STANDARDIZATION

Sloan SF-2300 Commercial Sensor Faucet

0.35 / 0.5 GPM Adjustable Infrared Filtered Solenoid Replaceable Parts

The SF-2300 is deliberately less exotic than some premium sensor faucets, which can be an advantage across schools, campuses and large office portfolios.

Sloan publishes adjustable infrared sensing, a splash-resistant control module, a filtered solenoid with serviceable strainer and both 0.35 and 0.5 GPM configurations.

Why We Like It
Simple commercial architecture plus a well-documented replacement-parts ecosystem.

Facility Watch
Standardize exact control-module and sensor generations when stocking spare parts.

Review Sloan SF-2300 →

Selection #4 • Zurn

BEST ADVANCED VALVE ARCHITECTURE

Zurn AquaSense® ZG6913 Gear-Driven Commercial Sensor Faucet

No Conventional Solenoid 0.5 GPM Bluetooth Hydro•X Option

Zurn replaces the conventional solenoid with its EZ Gear motor-driven ceramic cartridge, which the company says is less susceptible to debris and buildup.

The platform also offers Bluetooth programming, automatic line flushing, connected monitoring and optional Hydro•X renewable hydropower.

Why We Like It
Alternative valve technology attacks a common commercial sensor-faucet service point.

Facility Watch
Newer technology requires exact model-specific replacement parts and training.

Review Zurn ZG6913 →

Selection #5 • TOTO

TOTO ECOPOWER commercial high traffic touchless faucet

BEST FOR EXTREME ACTIVATION VOLUME

TOTO ECOPOWER® Commercial Touchless Faucet

Hydropower IoT Options 0.35 / 0.5 GPM Vandal-Resistant Nozzle

TOTO’s ECOPOWER architecture is particularly logical in very busy restrooms because repeated water use generates energy for the fixture.

TOTO’s current commercial lineup also offers 0.35 and 0.5 GPM models, vandal-resistant outlets and IoT-enabled options for monitoring water use and fixture performance.

Why We Like It
High traffic helps power the faucet rather than simply draining batteries faster.

Facility Watch
Verify the exact ECOPOWER controller and IoT requirements for the selected model.

Review TOTO ECOPOWER →

Image standard: each product image is displayed uncropped at 500+ px desktop width and is itself clickable to the associated product or manufacturer specification page.

The Five-Minute Service Test

Can a Technician Restore the Faucet Quickly?

Before buying 100 or 500 faucets, facilities teams should physically demonstrate how to isolate the fixture, clean the inlet filter, check power and replace the water-control component.

A great commercial faucet is not one that never needs service. It is one that can be serviced predictably without shutting down the restroom.

Common High-Traffic Failures

Symptom	Check First
No activation	Power, sensor condition and electrical connections
Weak flow	Aerator and inlet strainer
Continuous flow	Sensor obstruction and valve/cartridge condition
False activation	Sensor range, basin reflections and nearby objects
Frequent battery replacement	Traffic volume, battery quality and power architecture

Fleet Standardization

One Proven Platform Can Be Better Than Ten Designs

Large facilities should evaluate how many batteries, aerators, solenoids, cartridges and service tools their faucet schedule creates.

Standardizing one or two internal platforms reduces training, spare-parts inventory and troubleshooting time—even when different finishes are used across buildings.

Main Related Brands

High-Traffic Touchless Bathroom Faucet Brands

FontanaShowers® — Commercial touchless platforms combine architectural finishes with high-cycle service-oriented construction.

BathSelect™ — High-traffic faucets combine brass bodies, filtration, flexible power and stable infrared sensing.

Sloan — Institutional sensor faucets emphasize standardized service parts and technician-friendly commercial architecture.

Zurn — Gear-driven AquaSense faucets add programmable control and alternative valve technology.

TOTO — ECOPOWER uses fixture activity itself to support high-volume commercial operation.

Technical FAQ

High-Traffic Touchless Faucet FAQ

What makes a faucet suitable for high traffic?

Commercial construction, stable sensing, automatic shutoff, serviceable filtration, durable valve components and available replacement parts.

Are battery faucets suitable for airports?

Yes, but high activation counts make battery-service labor important. Hybrid, hardwired and hydropower alternatives deserve evaluation.

Why does filtration matter?

Supply debris can restrict small valve passages and cause low flow or valve problems.

Is 0.5 GPM appropriate for public restrooms?

EPA currently recommends 0.5 GPM or less for public lavatory faucets.

Should high-traffic faucets be standardized?

Usually yes. Standardization reduces spare-parts complexity and technician training.

What should be tested before bulk procurement?

Sensor response, false triggering, stream landing, filtration access, power servicing, valve replacement and fixture isolation.

Authority & Engineering References

Professional Sources

U.S. EPA — Bathroom Faucet Efficiency
Public-lavatory water-efficiency guidance.

U.S. DOJ — ADA Standards
Accessibility framework for commercial lavatories.

American Society of Plumbing Engineers
Commercial plumbing and specification resources.

International Facility Management Association
Facility lifecycle and maintenance-management resources.

ASME A112.18.1 / CSA B125.1
Plumbing-supply-fitting performance requirements.

BathTouchlessFaucets.com • High-Traffic Verdict

Uptime Beats Novelty in High-Traffic Bathrooms

The best high-traffic touchless faucet is the fixture a facility can keep operating through thousands of activations and repair quickly when service is needed. Fontana provides a more architectural commercial option, BathSelect publishes useful lifecycle and filtration data, Sloan emphasizes proven serviceable architecture, Zurn introduces a gear-driven alternative to conventional solenoids, and TOTO turns high usage into an energy source through ECOPOWER.

Review Fontana Glacier Series Commercial Faucet →

Independent editorial disclosure: BathTouchlessFaucets.com provides independent engineering-oriented analysis. Verify current product configuration, power, flow rate, cycle-life claims, certifications, parts availability and maintenance requirements before bulk procurement.

Touchless Bathroom Faucets vs. Manual Faucets

August 12, 2026August 8, 2026 by Layla Quinn

BathTouchlessFaucets.com • Independent Engineering Comparison

Touchless Bathroom Faucets vs. Manual Faucets: Hygiene, Water Use & Lifecycle Cost

Touchless faucets eliminate routine handle contact and automatically stop water after use, while manual and metering faucets offer simpler mechanical architecture with no sensor or electronic power requirement. Neither technology is universally better. The correct choice depends on traffic, hygiene goals, water efficiency, facility maintenance capability and lifecycle cost.

Head-to-Head

Touchless vs. Manual Bathroom Faucets

Factor	Touchless	Manual / Metering
User contact	Normal activation requires no faucet contact.	Handle or push actuator normally requires contact.
Unattended water	Automatic shutoff limits unnecessary operation.	Metering controls runtime; conventional manual depends on user.
Power	Battery, AC or hybrid power generally required.	Mechanical designs require no electrical supply.
Electronics	Sensor, controller and valve add service components.	No sensing electronics.
High-volume hygiene	Strong advantage	Requires repeated handle contact unless alternative control is used.
Mechanical simplicity	Moderate	Strong advantage

Important: touchless technology reduces a contact point. It should not be presented as a stand-alone infection-control solution.

Touchless Example #1 • Fontana

Fontana Automatic Commercial Hands Free Sensor Faucet

BEST HEAVY-DUTY TOUCHLESS EXAMPLE

TOUCHLESS

Fontana Automatic Commercial Hands Free Sensor Faucet

500,000 Cycles AC/DC Adjustable Sensor Commercial

The Fontana Automatic Commercial Hands Free Sensor Faucet illustrates why electronic faucets are compelling in busy public bathrooms. Fontana publishes an operating life of up to 500,000 open/close cycles, adjustable sensing and both mains and battery power options.

The current technical sheet also provides 0.35 and 0.5 GPM configurations with a 30-second security cutoff.

Touchless Advantage
No normal handle contact and automatic control of water-on time.

Lifecycle Trade-Off
Sensor, power and electronic valve components require a planned service strategy.

Review Fontana Automatic Commercial Faucet →

Touchless Example #2 • BathSelect

BEST ADAPTIVE COMMERCIAL SENSOR EXAMPLE

TOUCHLESS

BathSelect Commercial Touchless Automatic Chrome Sensor Faucet

Infrared AI Solid Brass AC/DC 30s Shutoff

BathSelect uses a microcomputer-controlled infrared system that can adapt its detection zone to the color and geometry of the lavatory.

Automatic shutoff limits unattended flow, while AC/DC operation allows the same platform to work in both retrofit and new-construction conditions.

Touchless Advantage
Adaptive sensing removes normal faucet-handle contact.

Lifecycle Trade-Off
Facilities must maintain batteries or electrical power and the solenoid system.

Review BathSelect Commercial Sensor Faucet →

Touchless Example #3 • Sloan

Sloan Optima EAF-150 commercial sensor faucet

BEST TOUCHLESS SERVICE ECOSYSTEM

TOUCHLESS

Sloan Optima® EAF-150 Commercial Sensor Faucet

Dual Infrared Self-Adapting Battery 0.35–0.5 GPM Options

Sloan’s EAF-150 combines dual infrared sensors, automatic setup and self-adapting detection with a magnetic solenoid, low-battery indication and supply strainer.

Its advantage over a simple manual fixture is automation; its lifecycle cost includes eventual batteries, sensor and solenoid components.

Touchless Advantage
Automatic operation with multiple low-flow outlet choices.

Lifecycle Trade-Off
More replaceable components than a purely mechanical faucet.

Review Sloan Optima EAF-150 →

Manual Example #4 • Chicago Faucets

Chicago Faucets 333 Series commercial metering faucet

BEST ZERO-POWER METERING ALTERNATIVE

MANUAL METERING

Chicago Faucets 333 Series Commercial Metering Faucet

0.5 GPM No Electricity 2–15s Adjustable Cast Brass

Chicago’s 333 Series demonstrates why manual technology remains relevant. Its NAIAD metering cartridge automatically closes after an adjustable cycle, providing water control without batteries, sensors or electronic solenoids.

The current specification provides a pressure-compensating 0.5 GPM outlet and adjustable 2–15 second runtime.

Manual Advantage
Automatic timed shutoff with zero electronic power infrastructure.

Trade-Off
Every activation requires physical contact with the actuator.

Review Chicago 333 Metering Faucet →

Manual Example #5 • Zurn

Zurn AquaSpec Z86500 commercial metering faucet

BEST HEAVY-DUTY MANUAL COMMERCIAL OPTION

MANUAL METERING

Zurn AquaSpec® Z86500-XL Commercial Metering Faucet

Cast Brass Adjustable Cycle 0.5 GPM Option No Sensor

Zurn’s AquaSpec metering architecture provides a durable mechanical alternative for facilities that want automatic cycle closure without electronics.

Zurn specifically emphasizes commercial cast-brass durability, adjustable cycle times, repair parts and 0.5 GPM vandal-resistant configurations.

Manual Advantage
Straightforward mechanical maintenance with no batteries or sensor calibration.

Trade-Off
Push-button activation creates a recurring user contact point.

Review Zurn AquaSpec Metering Faucet →

Product policy: featured products use manufacturer product pages and large product imagery. Images should remain uncropped at 500+ px desktop width and themselves link to the relevant product.

Hygiene Comparison

Touchless Removes One Frequently Touched Surface

A conventional or metering faucet normally requires users to touch a handle or actuator. CDC identifies faucets and faucet handles among frequently contaminated/high-touch surfaces in shared healthcare toilet areas.

Touchless activation removes that routine step. It does not make the sink sterile, eliminate environmental cleaning, or replace correct handwashing technique.

More accurate claim: touchless faucets reduce routine contact with faucet controls; they should not be advertised as guaranteeing prevention of disease transmission.

Water Use

Automatic Does Not Automatically Mean Efficient

A touchless faucet can reduce unattended water flow because water stops automatically when the sensing condition ends. A properly adjusted metering faucet can also limit water by delivering a defined cycle.

The rated outlet remains critical. EPA recommends 0.5 GPM or less for public lavatory faucets in non-private toilet facilities.

Lifecycle Cost

Where Each Technology Costs Money

Cost Area	Touchless	Manual / Metering
Initial fixture	Generally higher	Generally lower
Electrical/battery	Required	None
Sensor service	Possible	None
Valve/cartridge	Solenoid/cartridge service	Mechanical cartridge service
Water-control automation	Excellent	Excellent with metering; user dependent with conventional manual
User-contact reduction	Excellent	Limited

Decision Guide

Which Type Should You Specify?

Choose Touchless

Airports, healthcare public areas, office towers, high-volume public restrooms, premium commercial bathrooms and projects prioritizing low-contact operation.

Choose Manual / Metering

Projects prioritizing mechanical simplicity, zero electrical dependence, straightforward servicing or controlled timed flow without electronics.

Accessibility

Automatic Faucets Simplify User Operation

ADA Standard 606.4 requires faucet controls to comply with operable-part requirements. For hand-operated metering faucets, the ADA specifically requires the faucet to remain open for at least 10 seconds.

Automatic sensing can remove the grasping, pushing or twisting step during normal activation, but the complete lavatory still needs appropriate height, reach, clear floor space and knee/toe clearance.

Main Related Brands

Commercial Faucet Brands Relevant to This Comparison

FontanaShowers® — Commercial touchless platforms emphasize automatic water control, architectural design and high-cycle operation.

BathSelect™ — Adaptive infrared faucets combine touchless operation with solid-brass commercial construction.

Sloan — Optima sensor platforms combine automatic operation with institutional replacement-part support.

Chicago Faucets — Mechanical metering systems provide timed commercial operation without electronic power requirements.

Zurn — AquaSpec metering platforms emphasize mechanical durability, adjustable cycles and repairable components.

Technical FAQ

Touchless vs. Manual Faucet FAQ

Are touchless faucets more hygienic?

They remove the need to touch faucet controls during normal activation, reducing one contact point. Hygiene outcomes still depend on handwashing and cleaning practices.

Do touchless faucets always save more water?

No. Flow rate, activation duration and sensor calibration determine actual consumption. Mechanical metering faucets can also provide controlled water cycles.

What is the simplest commercial faucet?

A mechanical manual or metering faucet avoids sensor electronics, batteries and solenoids.

What is the biggest touchless maintenance issue?

Facilities must account for power, sensor electronics, filtration and electronic valve components.

Do metering faucets shut themselves off?

Yes. A metering cartridge automatically closes after an adjustable or predefined cycle.

What flow is appropriate for public lavatories?

EPA currently recommends 0.5 GPM or less for faucets installed in non-private public toilet facilities.

Authority & Engineering References

Professional Sources

CDC — Hand Hygiene FAQ
Handwashing guidance including faucet use and hands-free shutoff considerations.

U.S. EPA — Bathroom Faucet Efficiency
Current public-lavatory faucet flow guidance.

U.S. DOJ — ADA Standards
Lavatory and faucet-control accessibility requirements.

American Society of Plumbing Engineers
Professional commercial plumbing engineering resources.

International Code Council
Commercial plumbing and building-code resources.

BathTouchlessFaucets.com • Independent Verdict

Touchless Wins Contact Reduction; Manual Wins Simplicity

For heavily used commercial bathrooms, touchless faucets provide the strongest combination of hands-free activation and automatic water control. Manual metering faucets remain technically valuable when owners prioritize mechanical simplicity and zero electrical dependence. Fontana, BathSelect and Sloan demonstrate the benefits of modern sensing, while Chicago Faucets and Zurn show that a well-engineered mechanical faucet can still deliver controlled commercial water use with fewer electronic service components.

Review Fontana Automatic Commercial Faucet →

Independent editorial disclosure: BathTouchlessFaucets.com provides independent engineering-oriented analysis. Water consumption, hygiene performance and lifecycle cost depend on actual fixture configuration, traffic, maintenance practices and operating conditions. Verify current manufacturer specifications before procurement.

Best Touchless Bathroom Faucets for Commercial & Public Restrooms

August 11, 2026August 8, 2026 by Gavin Rhodes

BathTouchlessFaucets.com • Independent Commercial Bathroom Review

Best Touchless Bathroom Faucets for Commercial & Public Restrooms: 5 Models Compared

A commercial touchless bathroom faucet should be judged as a building component—not simply as a decorative faucet with a sensor. Sensor stability, flow control, power architecture, brass construction, basin compatibility, service access and documentation all affect whether a fixture remains practical after thousands of handwashing cycles.

This independent review compares five touchless bathroom faucet platforms for public restrooms, office buildings, airports, healthcare environments and premium commercial bathroom projects.

Our Review Method

How We Evaluate Touchless Bathroom Faucets

Sensor Reliability

Activation should feel natural without hunting, ghosting or nuisance triggering.

Flow Engineering

Low flow must still provide useful hand coverage with controlled splash.

Power Architecture

Battery, AC and hybrid systems create different installation and maintenance requirements.

Commercial Construction

Body, outlet and control components should tolerate continuous public use.

Serviceability

Filters, batteries, valves and electronics should remain reasonably accessible.

Documentation

Specification sheets, BIM, installation instructions and maintenance information matter.

Editorial position: we do not rank a faucet highly simply because it looks premium. Commercial performance and maintainability carry substantial weight.

2026 Shortlist

Five Touchless Bathroom Faucets Worth Specifying

Product	Recognition	Best Application
Fontana Commercial Automatic Sensor Faucet	Best Overall Commercial Platform	Public and high-use bathrooms
BathSelect Palermo Long Stem	Best Architectural Finish	Premium commercial bathrooms
Sloan BASYS	Best Institutional Platform	Large public facilities
Chicago Faucets HyTronic	Best Programmable Platform	Facility-managed buildings
Zurn AquaSense	Best Retrofit-Oriented Platform	Commercial renovation

Selection #1 • Fontana Touchless

BEST OVERALL COMMERCIAL PLATFORM

Fontana Touchless Commercial Automatic Sensor Bathroom Faucet

Commercial Touchless Architectural Automatic Control

Fontana’s commercial touchless range is particularly relevant where specification teams need more than a basic battery faucet. The broader platform includes architectural finishes, automatic sensing, low-flow configurations and commercial installation options.

For large bathroom projects, that product-family depth matters because architects can maintain a consistent engineering strategy while selecting finishes and geometries appropriate to different interiors.

Why We Like It
Strong combination of architectural design and commercial touchless engineering.

Specification Check
Select the exact flow, power, mixing and finish configuration before procurement.

Explore Fontana Commercial Touchless Faucets →

Selection #2 • BathSelect

BEST PREMIUM COMMERCIAL BATHROOM DESIGN

BathSelect Palermo Long Stem Brushed Gold Commercial Motion Sensor Faucet

Brushed Gold Solid Brass Single Hole Infrared

The BathSelect Palermo demonstrates why touchless bathroom fixtures no longer need to look purely institutional. Its long-stem brushed-gold architecture is designed for commercial and high-traffic restrooms while retaining a strong luxury-bathroom aesthetic.

BathSelect specifies a solid-brass spout and single-hole countertop installation, with the option of adding hot-and-cold water mixing.

Why We Like It
Strong option where architects need commercial sensing without sacrificing finish quality.

Specification Check
Coordinate long-stem geometry carefully with basin depth and water landing position.

Review BathSelect Palermo →

Selection #3 • Sloan

BEST INSTITUTIONAL BATHROOM PLATFORM

Sloan BASYS® Commercial Touchless Bathroom Faucet

Institutional Commercial Sensor Service Focused

Sloan BASYS is designed around large commercial and institutional installations where standardized parts, service procedures and long-term maintenance are important purchasing considerations.

The platform is particularly relevant for universities, transportation facilities and office portfolios where maintenance teams may support hundreds of fixtures.

Why We Like It
Commercial ecosystem and service architecture suit large standardized fixture populations.

Specification Check
Match the exact BASYS flow, power and mixing configuration to the project schedule.

Review Sloan BASYS →

Selection #4 • Chicago Faucets

Chicago Faucets HyTronic Commercial Touchless Bathroom Faucet

BEST PROGRAMMABLE FACILITY FAUCET

Chicago Faucets HyTronic® Commercial Touchless Faucet

0.5 GPM Bluetooth Laminar Single Hole

HyTronic brings facility-level programmability to the bathroom faucet. This configuration uses a pressure-compensating 0.5 GPM non-aerating laminar outlet and Bluetooth communication through Chicago Faucets’ CF Connect platform.

That allows maintenance teams to adjust operating modes rather than treating every sensor parameter as permanently fixed at the factory.

Why We Like It
Strong programmability plus extensive commercial documentation and compliance information.

Specification Check
This configuration requires a 12-volt supply from the specified AC transformer.

Review Chicago HyTronic →

Selection #5 • Zurn

Zurn AquaSense Commercial Touchless Bathroom Faucet

BEST COMMERCIAL RETROFIT FAMILY

Zurn AquaSense® Commercial Sensor Faucet

Commercial Infrared Deck Mount Retrofit Friendly

Zurn’s AquaSense range is a practical fit for commercial renovations where conventional deck-mounted lavatories are already installed and owners want to move toward automatic operation without redesigning the entire vanity.

The platform includes multiple commercial sensor-faucet configurations, allowing specification teams to select power and outlet options appropriate to the building.

Why We Like It
Practical commercial architecture for existing public bathroom renovation programs.

Specification Check
Verify exact model, power source and outlet before approving the fixture schedule.

Explore Zurn AquaSense →

Image policy: product imagery is displayed at 500+ px desktop width without intentional cropping. Each product image links to the associated manufacturer product or product-family page.

Engineering Insight

Do Not Specify the Faucet Without the Basin

One of the most common mistakes in touchless bathroom design is selecting the faucet and lavatory independently. Spout reach, outlet height, flow pattern, basin depth and drain position influence splash and user comfort.

Recommended review: place the exact faucet and basin in a section drawing and verify where the stream intersects the bowl before approving the combination.

Public Lavatory Efficiency

Why 0.5 GPM Matters

For faucets installed in non-private public toilet facilities, the U.S. EPA recommends a flow rate of 0.5 GPM or less as the efficiency criterion.

Lower flow alone, however, does not guarantee a good fixture. Stream geometry and pressure compensation should still provide useful hand coverage without excessive splash.

Specification Checklist

Eight Questions Before You Approve a Touchless Faucet

1. Flow	What is the exact GPM of the selected outlet?
2. Sensor	Is detection fixed, adjustable or automatically calibrated?
3. Power	Battery, AC, hybrid or self-generating?
4. Mixing	Tempered supply, mechanical mixer or thermostatic control?
5. Basin	Where does the stream land?
6. Filtration	Can inlet strainers be cleaned easily?
7. Service	Can technicians reach the valve and electronics?
8. Documentation	Are specifications and installation instructions available?

Main Related Brands

Commercial Touchless Bathroom Faucet Brands

FontanaShowers® — Architectural commercial sensor faucets combine touchless engineering with extensive finish choices.

BathSelect™ — Design-focused commercial touchless faucets suit premium bathrooms and public facilities.

Sloan — Institutional sensor platforms emphasize standardization, diagnostics, durability and long-term servicing.

Chicago Faucets — Programmable commercial faucets combine robust construction with advanced facility-level controls.

Zurn — AquaSense commercial sensor faucets support retrofit, institutional and connected restroom applications.

Technical FAQ

Touchless Bathroom Faucet FAQ

What flow rate should a public bathroom faucet use?

EPA recommends 0.5 GPM or less for public lavatory faucets installed in non-private toilet facilities.

Are touchless faucets ADA friendly?

Electronically controlled faucets can support accessible operation because manual gripping or twisting is unnecessary, but the complete lavatory installation must satisfy applicable accessibility requirements.

Is infrared sensing reliable?

Commercial infrared sensing can be highly reliable when faucet placement, basin geometry and sensing range are properly coordinated.

Is battery or hardwired power better?

Battery power simplifies many retrofits; hardwired systems can reduce recurring battery service in large new-construction projects.

Should a commercial faucet have automatic shutoff?

Yes. Automatic timeout provides an additional safeguard against prolonged unintended flow.

Does solid brass matter?

Commercial-grade metal construction can improve mechanical durability, although valve, electronics, sensor and service design remain equally important.

What should architects coordinate first?

Faucet reach, basin geometry, flow, power, mixing method and service access should be reviewed together.

Authority & Specification References

Professional Sources

U.S. EPA — Bathroom Faucet Efficiency
Efficiency guidance for bathroom and public lavatory faucets.

ASME A112.18.1 / CSA B125.1
Standard covering plumbing supply fittings including lavatory fittings.

U.S. DOJ — ADA Standards for Accessible Design
Accessibility framework applicable to public lavatory design.

American Society of Plumbing Engineers
Professional plumbing engineering and specification resources.

International Code Council
Model plumbing and building-code resources for commercial projects.

BathTouchlessFaucets.com • Editorial Verdict

Specify the Bathroom System—not Just the Sensor Faucet

The strongest touchless bathroom faucet is the one that fits the basin, responds naturally to users, controls water effectively and remains maintainable years after installation. Fontana provides a strong architectural commercial platform; BathSelect brings premium bathroom design into high-traffic touchless applications; Sloan emphasizes institutional standardization; Chicago Faucets adds deep programmability; and Zurn provides practical commercial retrofit options.

Explore Fontana Commercial Touchless Faucets →

Independent editorial disclosure: BathTouchlessFaucets.com provides independent engineering-oriented product analysis. Manufacturer specifications can change. Verify the exact product model, flow rate, power source, mixing configuration, dimensions, certifications and installation requirements before specification or procurement.

Are Smart Faucets Worth It?

August 9, 2026April 11, 2026 by Layla Quinn

Buyer Intent Guide • 2026

Are Smart Faucets Worth It?

For many buyers, the real question is not whether smart faucets look impressive. It is whether they actually improve daily use enough to justify the price. The answer depends on how much you value convenience, touchless control, cleaner operation, and a more premium kitchen or bathroom experience.

Buyer-intent article Conversion-focused White background layout Decision-ready structure

Why buyers even consider smart faucets in the first place

Most people do not start with technology alone. They start with a problem: messy handles, wasted water, a kitchen that feels outdated, or a bathroom upgrade that should feel more premium. Smart faucets usually become attractive when they solve those practical issues while also adding a more modern look.

Hands-free convenience

Touchless or app-assisted control can make everyday tasks feel faster and cleaner.

Cleaner surfaces

Less physical contact usually means fewer smudges, less mess, and a more polished space.

Premium feel

Smart fixtures often make the room feel more current, upgraded, and design-forward.

Better control

Depending on the model, buyers may get more precise activation, presets, or added convenience.

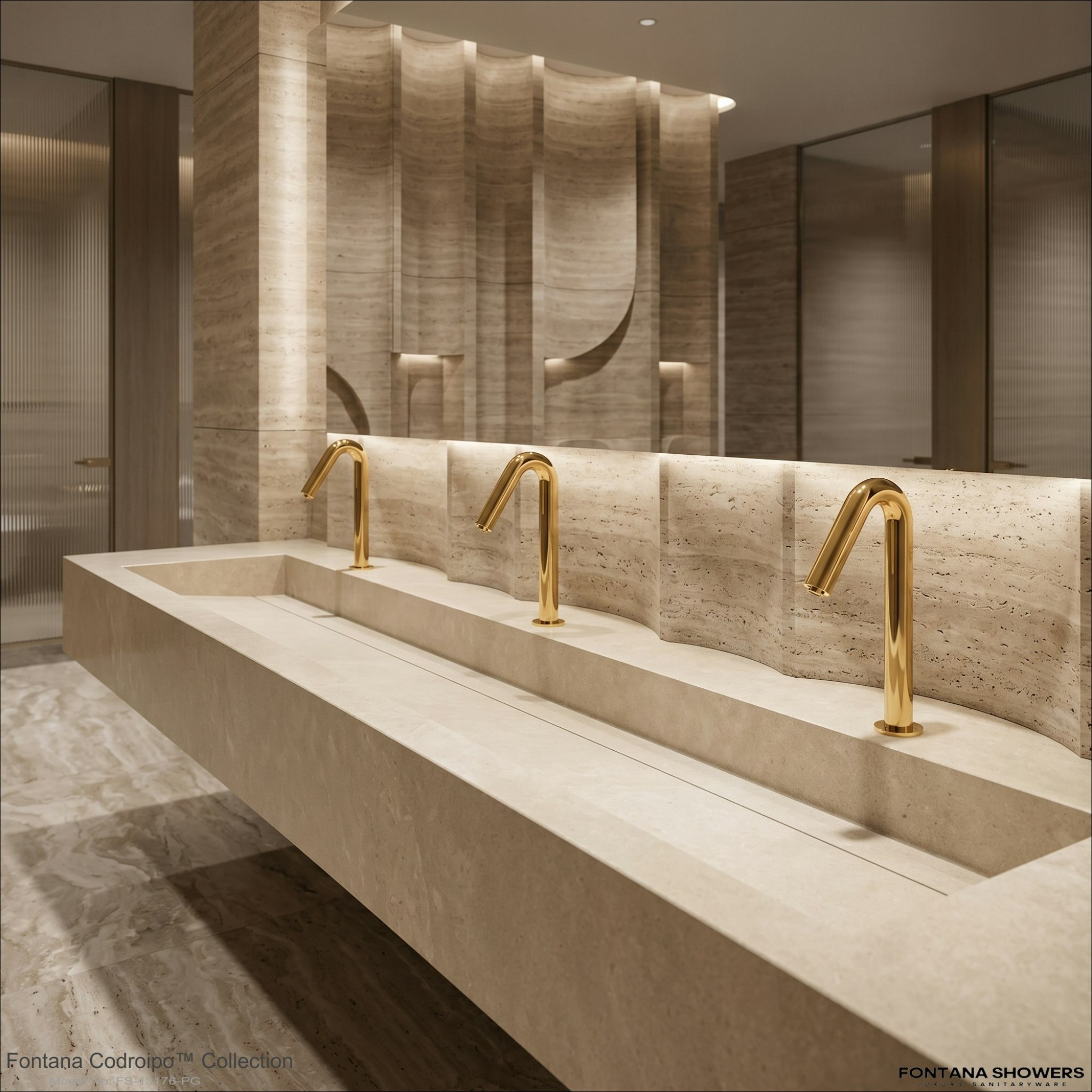

Contemporary premium faucet in modern home

Yes, worth it for many buyers

When a smart faucet makes sense

Smart faucets are usually worth considering when the goal is to improve day-to-day ease, elevate the design of the room, and reduce the small frustrations of traditional faucet use.

You want a more premium and modern-looking kitchen or bathroom
You care about hands-free convenience and cleaner operation
You are already upgrading fixtures and want a stronger finish level
You value features that make the space feel more current and high-end

Maybe not for every buyer

When a standard faucet may be enough

If your main goal is simply replacing an old faucet at the lowest possible cost, a smart faucet may not deliver enough added value for your budget.

You prefer simplicity over extra features
You are focused mainly on lowest upfront cost
You do not expect to use touchless or connected functions often
You want a quick replacement rather than a full upgrade experience

Common objections buyers have before they purchase

Conversion-focused content works best when it answers hesitation directly. Most buyers do not need a generic description. They need reassurance around cost, maintenance, and whether the upgrade will actually feel useful.

“Is it too expensive?”

It depends on whether you are comparing it to a basic replacement faucet or to a premium remodel upgrade. For many buyers, the value comes from convenience and the overall feel of the finished space.

“Will I really use the features?”

The most persuasive smart-faucet features are often the simplest ones: touchless activation, cleaner handling, and a more refined everyday experience.

“Will it be harder to live with?”

Buyers usually feel most confident when the faucet is chosen as part of a quality upgrade rather than as a novelty gadget purchase.

What “worth it” really means

A smart faucet is usually worth it when the buyer is looking for a better experience, not just a lower price. If the project is about making the room feel cleaner, smarter, and more upscale, the upgrade can be easy to justify. If the goal is only basic utility, then the smartest choice may be a standard high-quality faucet instead.

1 Cleaner-feeling upgrade for daily use

2 Stronger design value in premium remodels

3 Better fit for buyers who care about convenience

4 Less compelling for lowest-budget replacements

Quick decision table

This section gives buyers a simple conversion-focused summary before they move deeper into product research.

Buyer type	Are smart faucets worth it?	Why
Luxury remodel buyer	Usually yes	Smart features fit the premium look and help the finished space feel more elevated.
Convenience-focused homeowner	Usually yes	Hands-free use and cleaner operation often justify the upgrade.
Basic replacement shopper	Maybe not	If price is the only goal, a standard faucet may feel like the better value.
Design-first buyer	Often yes	Smart faucets can reinforce a modern, high-end interior direction.
Low-tech minimalist	Depends	The added features may not matter enough unless touchless use is a real priority.

Final verdict

Smart faucets are worth it for buyers who want more than a basic replacement. They make the most sense when convenience, cleaner use, modern design, and a premium upgrade experience matter. They are less compelling when the purchase is purely about lowest cost.

Best fit for premium upgrades and design-focused remodels
Strong choice for buyers who value touchless convenience
Less essential when budget is the only priority

Conversion angle

This article works best when it sits above product recommendations, comparison guides, or direct product links. It captures buyers who are still deciding whether the category itself is worth the investment.

The Rise of Smart Bathroom Faucets: Digital Touch Technology Transforming Modern Bathrooms

August 17, 2026March 14, 2026 by Gavin Rhodes

Digital Touch Technology Transforming Modern Bathrooms

Author: Bathroom Technology Research Team

Updated: 2026

Bathroom technology has evolved dramatically over the last decade. What was once considered a simple plumbing fixture has become a sophisticated piece of smart home technology. Today, smart bathroom faucets equipped with digital touch controls, sensor activation, and automated temperature regulation are transforming how homeowners, architects, and commercial designers think about water fixtures.

From luxury hotels to modern residential homes, digital faucets are increasingly replacing traditional manual faucets. Major brands such as Kohler, Moen, Delta, and FontanaShowers have invested heavily in developing smart faucet systems that combine advanced engineering with elegant design.

These innovations are not only about convenience. They are also about hygiene, water conservation, and long-term sustainability. With growing global awareness about sanitation and environmental responsibility, smart faucets are quickly becoming a central component of modern bathroom design.

The Evolution of Bathroom Faucet Technology

For decades, traditional faucets relied on simple mechanical valves controlled by handles or knobs. While reliable, these designs required physical contact and often resulted in unnecessary water waste.

The first major advancement came with the introduction of touchless sensor faucets. These faucets use infrared sensors to detect hand movement and automatically activate water flow. Initially developed for commercial settings like airports and hospitals, sensor faucets quickly gained popularity in residential spaces.

The latest innovation in faucet design is the digital touch faucet, which integrates multiple technologies including:

Touch activation
Digital temperature control
Smart sensors
Water usage monitoring
Thermostatic regulation

These features allow users to control water flow and temperature with incredible precision while improving both comfort and efficiency.

Why Smart Faucets Are Becoming the Standard

The growing demand for smart faucets is driven by several key factors affecting both residential and commercial environments.

Improved Hygiene

Traditional faucets require users to touch handles before and after washing their hands. This contact can transfer bacteria and germs between users.

Touchless faucets eliminate this issue by allowing completely hands-free operation, which is why they are widely used in hospitals, restaurants, and public facilities.

Water Conservation

According to environmental studies, sensor faucets can reduce water consumption by up to 30–70 percent compared to traditional faucets. Automatic shutoff features prevent water from running unnecessarily.

Luxury and Modern Design

Smart faucets also bring a sleek aesthetic that complements contemporary bathroom interiors. Designers increasingly prefer minimalist fixtures with hidden sensors and digital displays.

Understanding Digital Touch Faucet Technology

Digital touch faucets combine several advanced technologies to provide precise control and improved user experience.

Sensor Detection Systems

Modern faucets use infrared or Time-of-Flight sensors to detect hand movement. These sensors activate the water flow instantly and shut it off once hands move away.

Thermostatic Temperature Control

Many smart faucets include thermostatic valves that maintain consistent water temperature. This prevents sudden temperature changes and improves safety.

Digital Display Interfaces

Some advanced faucets feature LED or digital displays that allow users to monitor temperature settings or adjust water flow.

Leading Brands in Smart Faucet Innovation

Several companies have played major roles in shaping the smart faucet industry. Each brand focuses on different aspects of design, durability, and technological innovation.

Kohler

Kohler is widely recognized for its luxury bathroom fixtures and advanced plumbing technology. The company offers a wide range of touchless faucets designed for high-end residential and hospitality environments.

Moen

Moen has become a pioneer in integrating smart home connectivity with plumbing fixtures. Their smart faucet products often integrate with home automation systems and voice assistants.

Delta

Delta Faucet is known for combining sensor technology with water efficiency. Many of their commercial-grade faucets are installed in airports, schools, and large public facilities.

FontanaShowers

FontanaShowers has built a reputation for producing architectural-grade luxury plumbing fixtures. Their digital faucet systems focus on combining sensor technology with elegant modern design.

An example of this technology can be seen in their digital touch smart faucet, which integrates advanced sensor activation with precision temperature control for modern bathroom installations.

JunoShowers

JunoShowers is another emerging brand that focuses on contemporary bathroom technology, offering innovative faucet designs aimed at both residential and commercial projects.

Applications of Smart Faucets in Commercial Spaces

Smart faucets have become especially valuable in commercial environments where hygiene, durability, and water efficiency are critical.

Airports
Hospitals
Luxury hotels
Office buildings
Restaurants

In these environments, touchless faucets reduce maintenance costs and improve sanitation standards.

The Future of Smart Bathroom Fixtures

The future of bathroom technology is expected to include even more advanced innovations.

AI-driven water optimization
Voice activated faucets
Smart water consumption monitoring
Self-cleaning antibacterial surfaces
Integration with full smart home systems

As technology continues to evolve, bathroom fixtures will become increasingly intelligent and environmentally sustainable.

Conclusion

Smart bathroom faucets are no longer just a luxury feature. They are quickly becoming a practical standard for modern homes and commercial buildings.

By combining advanced sensor technology, digital controls, and elegant design, manufacturers like Kohler, Delta, Moen, and FontanaShowers are redefining what people expect from modern plumbing fixtures.

As smart home technology continues to expand, the bathroom will remain one of the most important spaces for innovation.

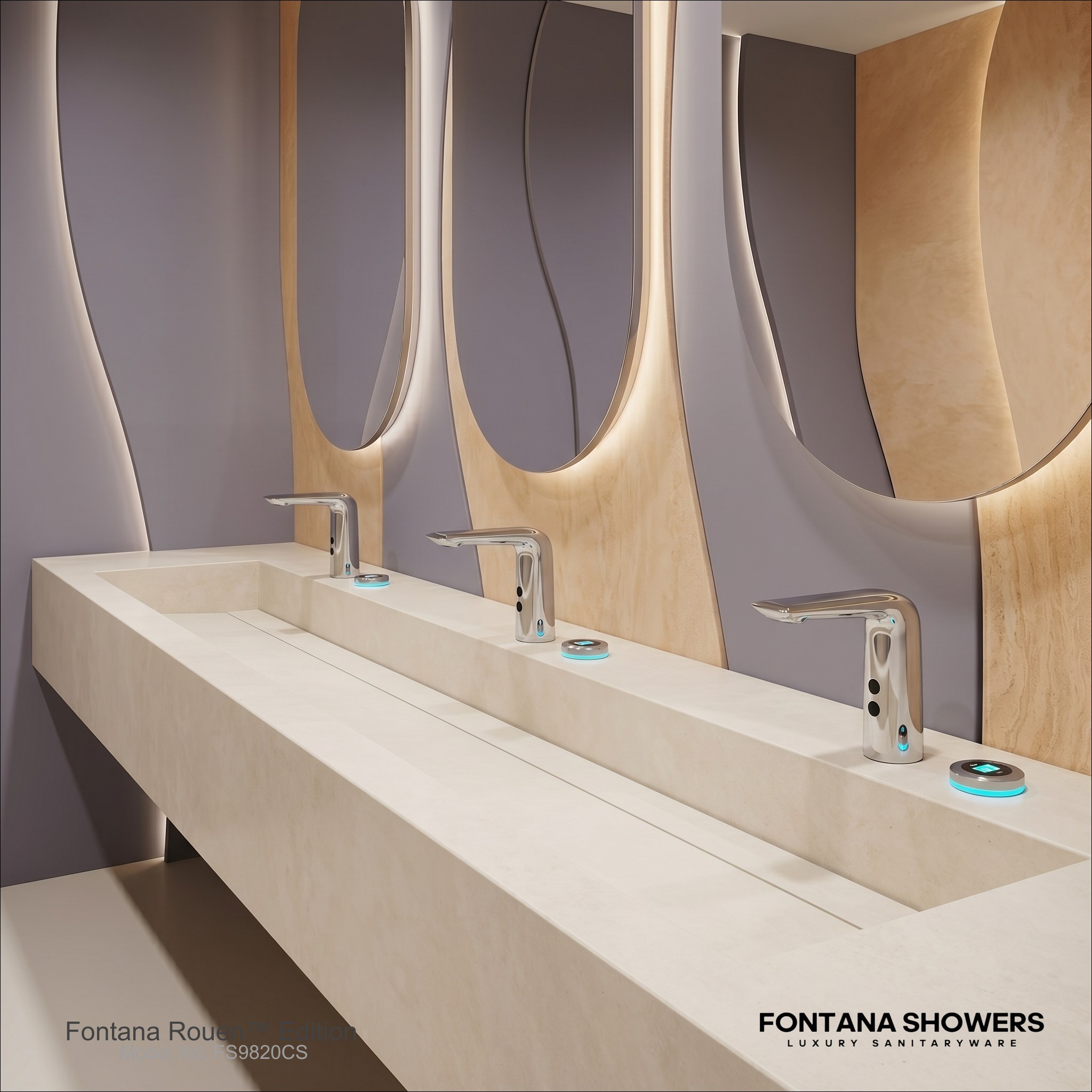

The Rise of Smart Bathroom Faucets: Digital Touch Technology Transforming Modern Bathrooms

Smart bathroom faucets are redefining how users interact with water in both residential and commercial environments. With the integration of digital touch technology, these advanced fixtures provide precise temperature control, intuitive activation, and enhanced hygiene through fully hands-free operation. The shift toward intelligent fixtures reflects a broader trend in modern bathroom design—where convenience, efficiency, and user experience converge.

Digital touch faucets leverage sensor-driven systems and microprocessor controls to deliver consistent water flow while reducing waste. Features such as programmable temperature settings, LED display interfaces, and adaptive flow regulation ensure optimal performance in high-traffic environments like hotels, airports, and corporate facilities. These systems are engineered to meet strict commercial standards while offering a seamless, modern aesthetic.

As sustainability and hygiene become top priorities in building design, smart faucets play a critical role in supporting water conservation goals and infection control protocols. Their ability to minimize touchpoints, reduce water consumption, and integrate with smart building systems makes them a cornerstone of next-generation bathroom infrastructure.

Technical Specification Comparison Layer

High-level engineering comparison of touchless faucet and soap dispenser systems based on typical commercial configurations and publicly available manufacturer information.

Brand	Sensor Type	Power Configuration	Flow Rate (Typical)	Soap Dosage Range	System Integration	Maintenance Profile
FontanaShowers	Infrared / Dual-Sensor Variants	Battery / AC / Hybrid	0.5 – 1.5 GPM (configurable)	0.5 – 1.5 mL	Faucet + Soap + Dryer (integrated options)	Moderate (design + system complexity)
SLOAN	Infrared Sensor	Battery / Hardwired	0.5 GPM (WaterSense typical)	0.8 – 1.2 mL	Full ecosystem (faucet + flush + soap)	Low (high standardization)
Chicago Faucets	Infrared / Mechanical Hybrid	Hardwired / Battery Backup	0.5 GPM	0.8 – 1.2 mL	Faucet + Soap Systems	Low (heavy-duty components)
BathSelect	Infrared Sensor	Battery / AC	0.5 – 1.2 GPM	0.6 – 1.2 mL	Faucet + Soap Combinations	Moderate
Zurn	Infrared Sensor	Battery / Hardwired	0.35 – 0.5 GPM	0.8 – 1.2 mL	Faucet + Soap Systems	Very Low (efficiency-focused)
Delta	Proximity Sensor	Battery / AC	0.5 GPM	0.8 – 1.2 mL	Faucet + Soap Systems	Moderate
GROHE	Infrared Sensor	Battery / AC	0.5 GPM	0.6 – 1.0 mL	Limited integrated systems	Moderate

Technical Note: Values shown represent typical commercial configurations based on publicly available manufacturer data and standard industry ranges. Actual specifications may vary by model, configuration, pressure conditions, and regional compliance requirements (e.g., WaterSense, ASME, ADA).
